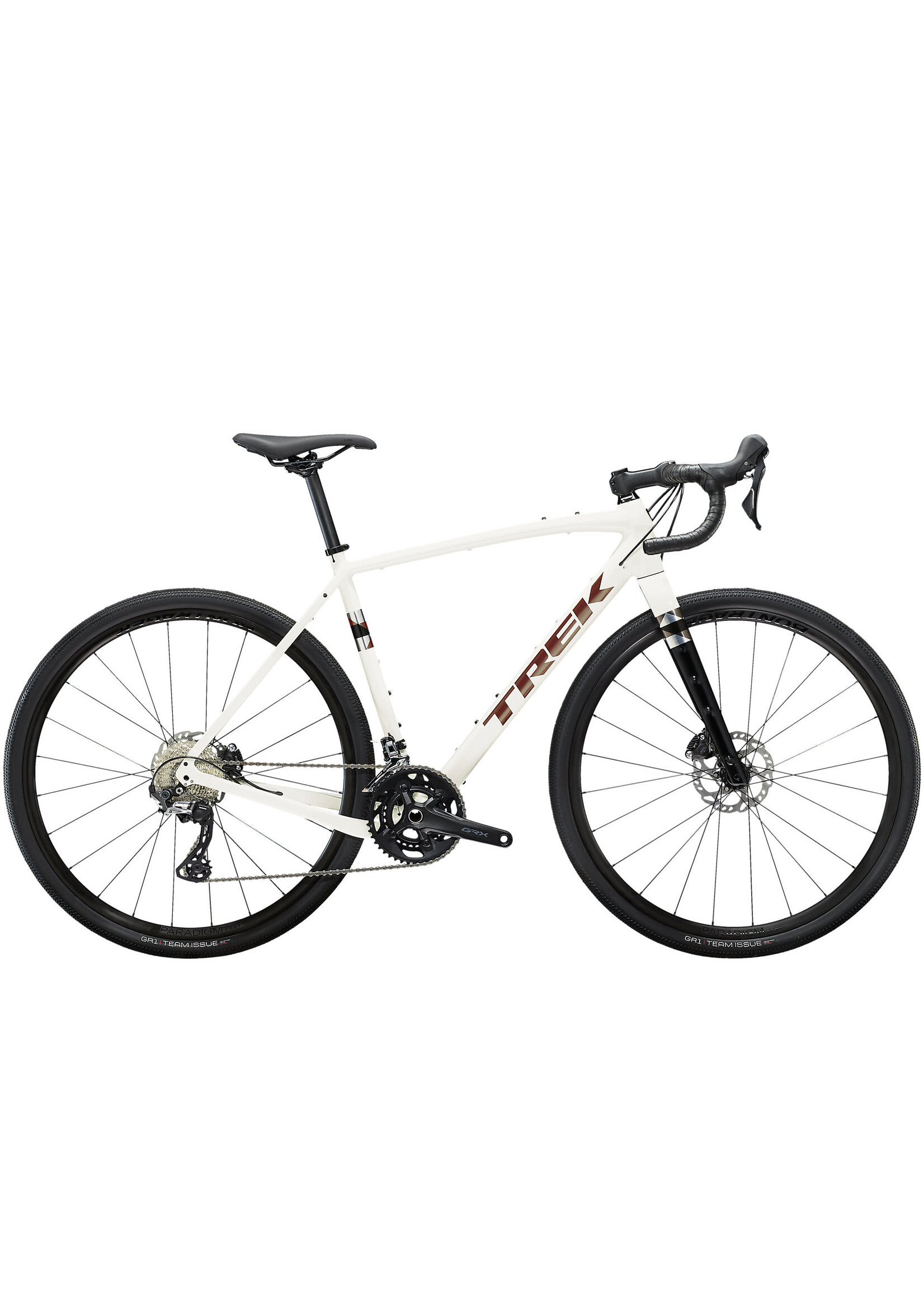

Checkpoint ALR 5 is the best value gravel bike in the line-up. It's a high-quality build that will hold up for long, rugged miles on roads, dirt and even the most treacherous gravel. A wealth of features like nimble-yet-stable progressive geometry, loads
| Frame | 300 Series Alpha Aluminium, tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, 142x12 mm thru-axle |
|---|---|
| Fork | Checkpoint, carbon legs, tapered alloy steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru axle |
| Frame fit | Gravel |
| Hub front | Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle |
|---|---|
| Skewer front | Bontrager Switch thru axle, removable lever |
| Hub rear | Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| *Rim | Size: 49, 52, 54, 56, 58, 61 Bontrager Paradigm, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
| Size: 49, 52, 54, 56, 58, 61 Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
|
| Tyre | Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40 c |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager Aeolus XXX rim strip |
| Max tyre size | 700x45c / 650x2.1" Bontrager tyres |
| Shifter | Shimano GRX RX600, 11-speed |
|---|---|
| Front derailleur | Shimano GRX RX810, braze-on |
| Rear derailleur | Shimano GRX RX810, long cage, 34T max cog |
| *Crank | Size: 49 Shimano GRX RX600, 46/30, 165 mm length |
| Size: 52 Shimano GRX RX600, 46/30, 170 mm length |
|
| Size: 54, 56 Shimano GRX RX600, 46/30, 172.5 mm length |
|
| Size: 58, 61 Shimano GRX RX600, 46/30, 175 mm length |
|
| Bottom bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano 105 HG700-11, 11-34, 11-speed |
| Chain | Shimano HG601 |
| Max. chainring size | 1x: 44T SRAM or 50T Shimano, 2x: 50/34 |
| *Saddle | Size: 49, 52 Bontrager Verse Comp, steel rails, 155 mm width |
|---|---|
| Size: 54, 56, 58, 61 Bontrager Verse Comp, steel rails, 145 mm width |
|
| Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |
| *Handlebar | Size: 49 Bontrager Elite Gravel, 38 cm width |
| Size: 52 Bontrager Elite Gravel, 40 cm width |
|
| Size: 54, 56 Bontrager Elite Gravel, 42 cm width |
|
| Size: 58, 61 Bontrager Elite Gravel, 44 cm width |
|
| Handlebar tape | Bontrager Supertack Perf tape |
| *Stem | Size: 49 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
| Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
|
| Size: 56, 58 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
|
| Size: 61 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length |
|
| Head set | FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom |
| Brake rotor | Shimano SM-RT70, CenterLock, 160 mm |
| Rotor size | Max brake rotor sizes: 160 mm front and rear |
| Weight | 56 - 9.75 kg / 21.5 lb |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
