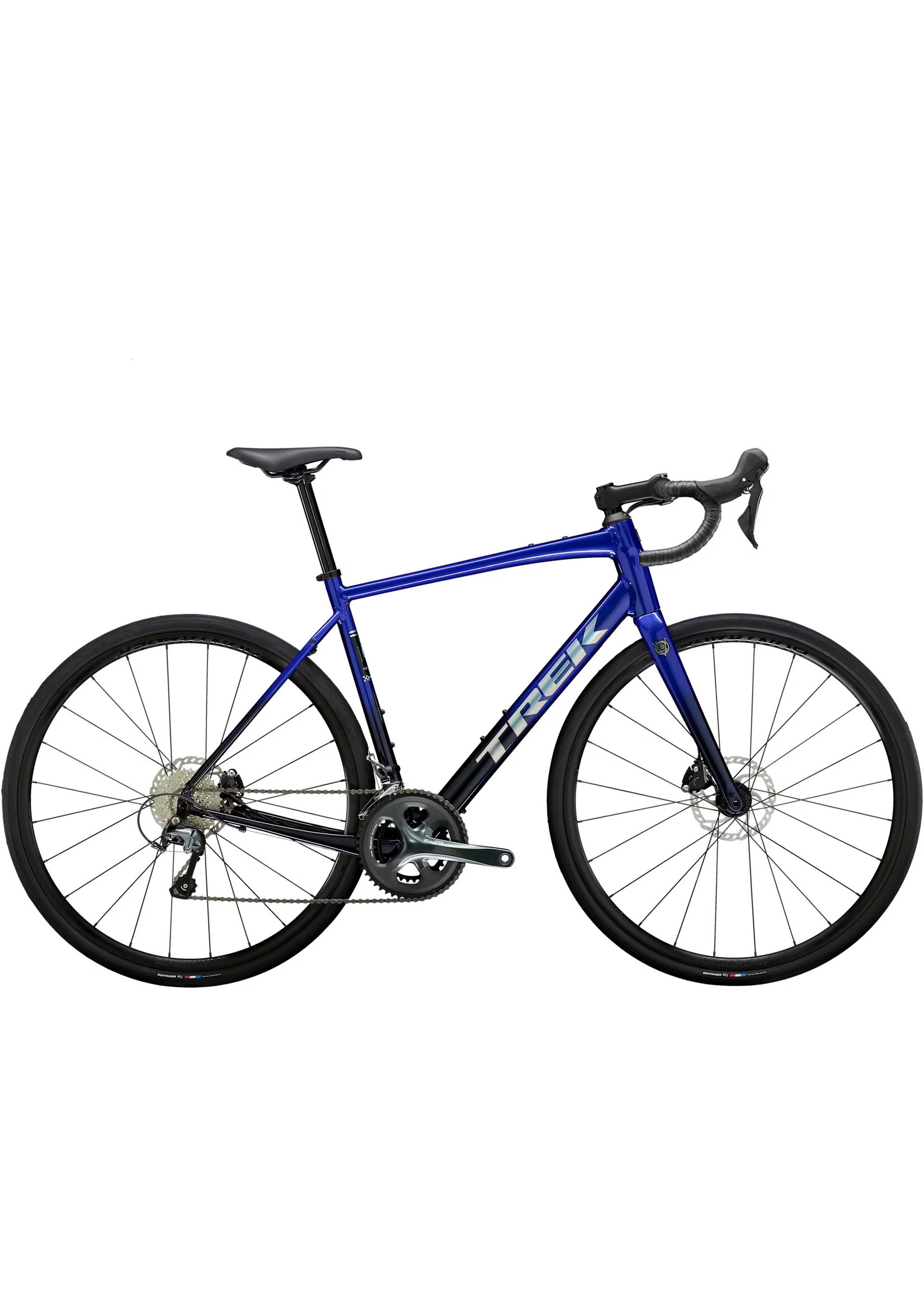

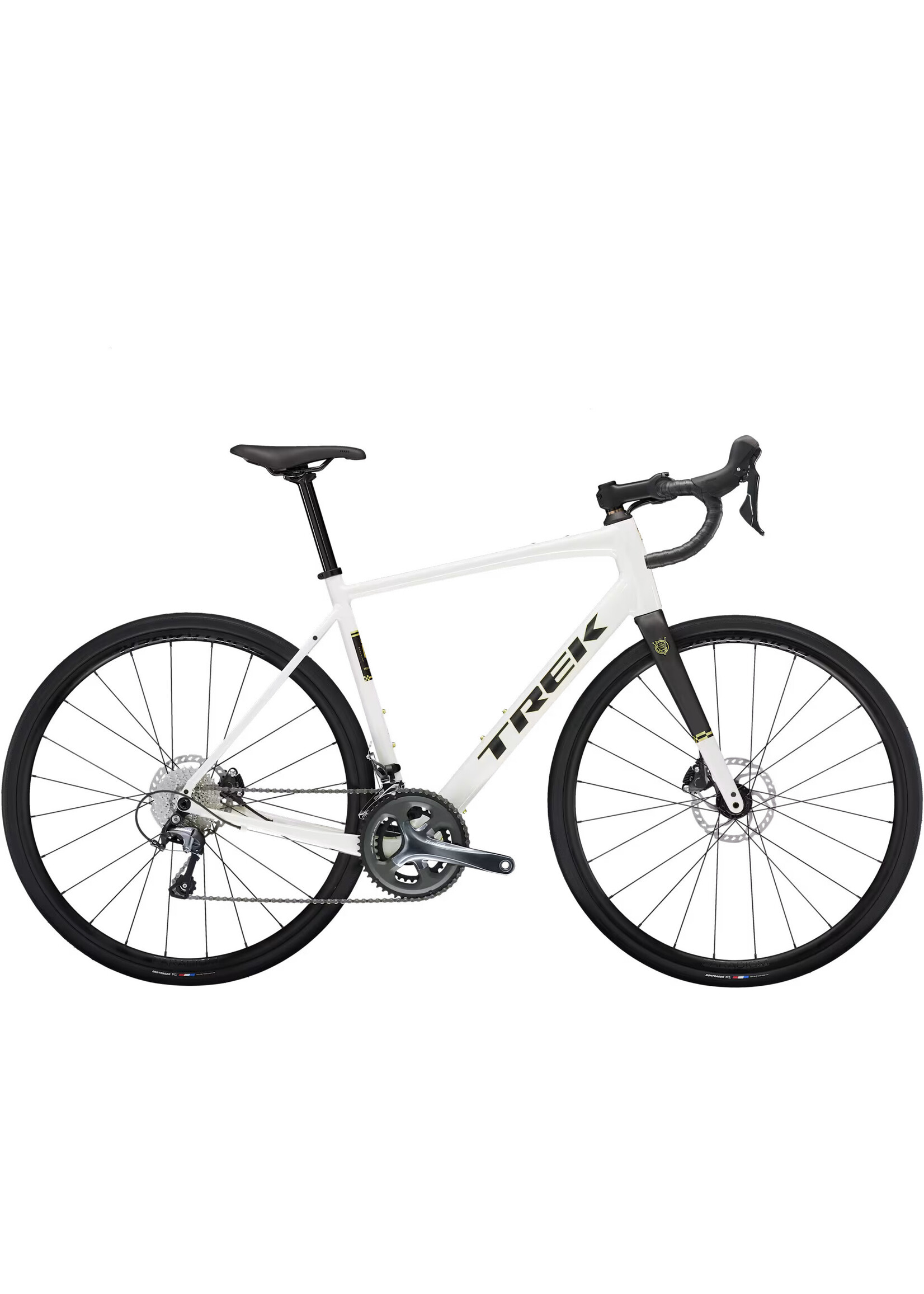

Domane AL 4 Gen 4

Frame	100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, flat-mount disc, UDH, 142x12 mm thru axle
Fork	Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle

Weight

Weight	56 - 10.35 kg / 22.82 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Drivetrain

Shifter	Shimano Tiagra R4720, 10-speed
Front derailleur	Shimano Tiagra 4700, 31.8 mm clamp
Rear derailleur	Shimano Tiagra 4700, long cage, 34T max cog
*Crank	Size: 44 Shimano Tiagra 4700, 50/34, 165 mm length
	Size: 49, 52 Shimano Tiagra 4700, 50/34, 170 mm length
	Size: 54, 56 Shimano Tiagra 4700, 50/34, 172.5 mm length
	Size: 58, 61 Shimano Tiagra 4700, 50/34, 175 mm length
Bottom bracket	Shimano RS501 BSA
Cassette	Shimano 10-speed, 11-32T
Chain	Shimano Tiagra HG54, 10-speed
Max. chainring size	1x: 50T, 2x: 50/34

Wheels

Hub front	Formula RX-512 alloy, 6-bolt, 100x12 mm thru axle
Skewer front	Bontrager Switch chamfered thru axle, removable lever
Hub rear	Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear	Bontrager Switch chamfered thru axle, removable lever
Rim	Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Spokes	14 g stainless steel, black
Tyre	Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm

Components

Saddle	Verse Short, steel rails, 145 mm width
*Seatpost	Size: 44, 49 Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length
*Seatpost	Size: 52, 54, 56, 58, 61 Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length
*Handlebar	Size: 44 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width
	Size: 44, 49 Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 38 cm width
	Size: 49 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width
	Size: 52 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width
	Size: 52 Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 40 cm width
	Size: 54, 56 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width
	Size: 54, 56 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width
	Size: 58, 61 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 44 cm control width, 48 cm drops width
	Size: 58, 61 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width
Handlebar tape	Bontrager Supertack Perf tape
*Stem	Size: 44 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
	Size: 49 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
	Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
	Size: 56, 58 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
	Size: 61 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
Brake	Shimano Tiagra hydraulic disc, flat mount
Brake rotor	Shimano RT66, 6-bolt, 160 mm
Rotor size	Max brake rotor sizes: 160 mm front and rear
